Lesson 7: Client Editor - Map Editor

From server discipline to creator tools

In Lesson 6: Game Server - Performance Optimization, we protected the authoritative tick from slow work, world scans, and allocation spikes. Now we switch viewpoints: instead of only running the world, we need tools to build it.

This lesson adds a map editor mode inside the game client — your first "god-mode" tool.

The key idea:

Game Client
├── Play Mode: player input becomes movement/combat intent
└── Editor Mode: developer input becomes map-edit commands

We are not building a Unity-like engine. We are adding a practical in-client editor that uses the same renderer, camera, asset loading, and world representation your game already needs.

By the end, you should have a clear model for:

• representing map tiles and layers
• converting mouse clicks into world edits
• tracking dirty chunks
• saving map files safely
• keeping editor power separate from server authority

Next lesson will extend the editor idea to monsters, but today we stay focused on terrain/map editing.

Treat the editor as a client state

Back in Lesson 2: Game Client - Basics, we separated the main loop into subsystems and client states. The map editor fits naturally into that structure.

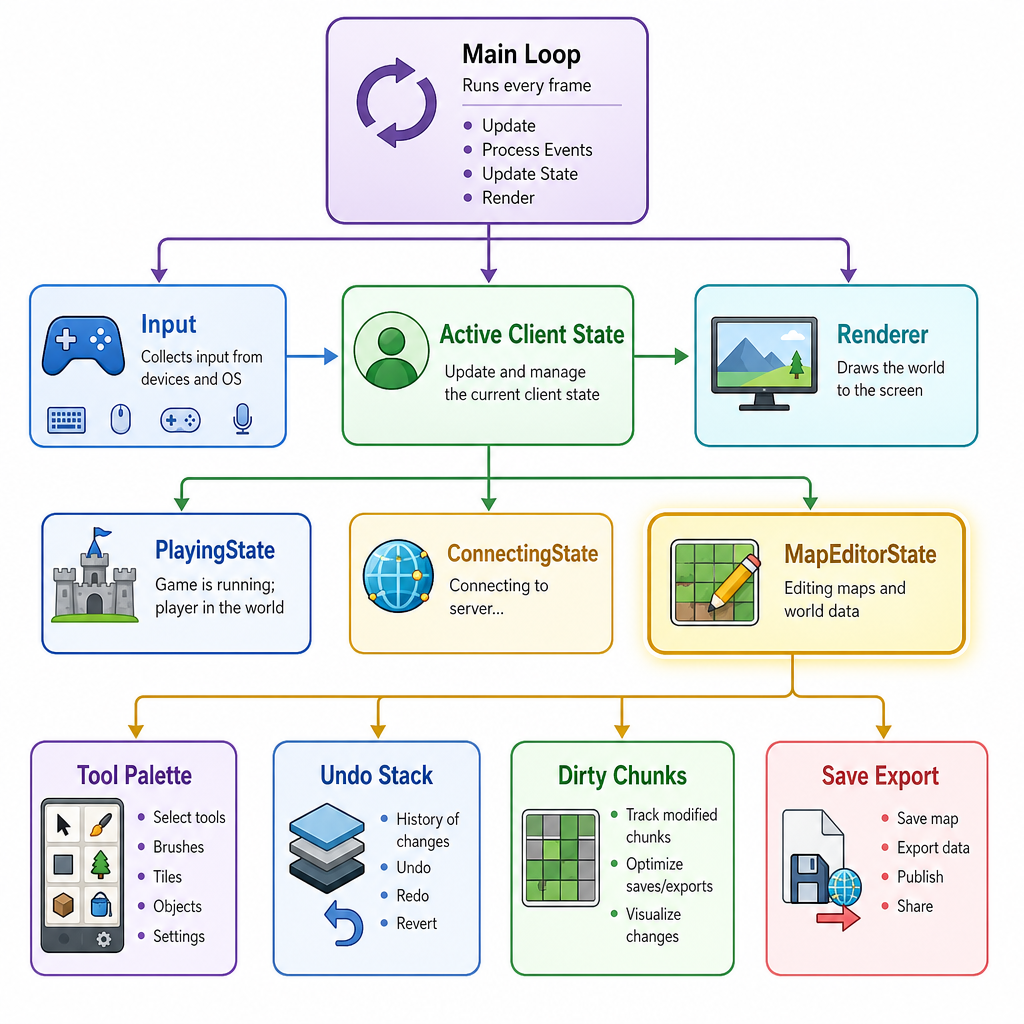

A clean architecture looks like this:

Main Loop
├── poll input
├── update active client state
│   ├── PlayingState
│   ├── ConnectingState
│   └── MapEditorState
└── render

MapEditorState should not be a pile of global hotkeys. Give it explicit ownership over editor-only concerns:

• selected brush/tool
• current tile palette item
• camera panning/zooming behavior
• selected layer
• undo/redo stack
• dirty chunk list
• save/export command

But it should reuse shared client systems:

• renderer
• texture atlas
• asset database
• map/world data structure
• input abstraction
• filesystem utilities

This keeps the editor powerful without making your normal game client depend on editor-only logic.

Start with boring data

A good editor begins with a boring, explicit map format. For a first MMORPG map editor, avoid clever procedural structures until you can reliably load, edit, save, and validate simple maps.

A practical 2D tile map can be modeled as:

Map
├── width, height
├── tileSize
├── layers
│   ├── ground
│   ├── collision
│   └── decoration
└── metadata

Each layer is a grid of tile IDs. A tile ID of 0 can mean "empty".

Why layers?

• ground: grass, dirt, stone
• collision: blocked/unblocked movement
• decoration: trees, rocks, signs

This is also server-friendly. The server probably does not care about decorative pixels, but it absolutely cares about collision and navigation-relevant map data.

Here is a tiny standalone C++ example that builds a map, edits two tiles, and prints a simple text serialization.

```cpp
#include <iostream>
#include <vector>
#include <string>

struct TileLayer {
    std::string name;
    int width = 0;
    int height = 0;
    std::vector<int> tiles;

    TileLayer(std::string layerName, int w, int h)
        : name(std::move(layerName)), width(w), height(h), tiles(w * h, 0) {}

    int& at(int x, int y) {
        return tiles[y * width + x];
    }
};

struct Map {
    int width = 0;
    int height = 0;
    int tileSize = 32;
    std::vector<TileLayer> layers;
};

void printLayer(const TileLayer& layer) {
    std::cout << "layer " << layer.name << "\n";
    for (int y = 0; y < layer.height; ++y) {
        for (int x = 0; x < layer.width; ++x) {
            std::cout << layer.tiles[y * layer.width + x] << ' ';
        }
        std::cout << "\n";
    }
}

int main() {
    Map map;
    map.width = 5;
    map.height = 4;
    map.tileSize = 32;

    map.layers.emplace_back("ground", map.width, map.height);
    map.layers.emplace_back("collision", map.width, map.height);

    map.layers[0].at(2, 1) = 7;  // grass variant
    map.layers[1].at(2, 1) = 1;  // blocked

    std::cout << "map " << map.width << "x" << map.height
              << " tileSize=" << map.tileSize << "\n";

    for (const auto& layer : map.layers) {
        printLayer(layer);
    }

    return 0;
}
```

In an MMORPG, why should the map editor still respect a validation/export boundary instead of directly mutating the live authoritative server world?

Convert input into map intent

In Lesson 2, we treated input as intent. The editor follows the same rule.

A mouse click should not directly mean "write index 1234." It should become an editor intent:

screen position -> world position -> tile coordinate -> edit command

For an orthographic 2D map editor, the basic conversion is:

worldX = screenX + cameraX
worldY = screenY + cameraY

tileX = floor(worldX / tileSize)
tileY = floor(worldY / tileSize)

Later, if you move to an isometric map or a 3D terrain editor, this step becomes ray casting. But the principle stays the same: input becomes a well-defined edit request.

```cpp
#include <cmath>
#include <iostream>

struct Vec2 {
    float x = 0.0f;
    float y = 0.0f;
};

struct TileCoord {
    int x = 0;
    int y = 0;
};

TileCoord screenToTile(Vec2 screen, Vec2 camera, int tileSize) {
    float worldX = screen.x + camera.x;
    float worldY = screen.y + camera.y;

    return {
        static_cast<int>(std::floor(worldX / tileSize)),
        static_cast<int>(std::floor(worldY / tileSize))
    };
}

int main() {
    Vec2 mouseScreen{150.0f, 90.0f};
    Vec2 camera{64.0f, 32.0f};
    int tileSize = 32;

    TileCoord tile = screenToTile(mouseScreen, camera, tileSize);

    std::cout << "Mouse screen: (" << mouseScreen.x << ", " << mouseScreen.y << ")\n";
    std::cout << "Camera offset: (" << camera.x << ", " << camera.y << ")\n";
    std::cout << "Selected tile: (" << tile.x << ", " << tile.y << ")\n";

    return 0;
}
```

True or false: because the editor is a god-mode client feature, it is acceptable for it to bypass validation and directly overwrite live server world memory.

Use commands for edits

A map editor becomes frustrating quickly if every mistake is permanent. The simplest useful pattern is an edit command that knows how to apply and undo itself.

For a tile brush, store:

• target layer
• target coordinate
• old tile ID
• new tile ID

Then your editor can support:

• undo/redo
• dirty chunk tracking
• edit logging
• eventually networked/admin review workflows

This should feel familiar if you have used command-style handling in backend systems: represent a change as data, validate it, then apply it intentionally.

```cpp
#include <iostream>
#include <vector>

struct TileMap {
    int width;
    int height;
    std::vector<int> tiles;

    TileMap(int w, int h) : width(w), height(h), tiles(w * h, 0) {}

    int& at(int x, int y) {
        return tiles[y * width + x];
    }
};

struct PaintTileCommand {
    int x;
    int y;
    int oldTile;
    int newTile;

    void apply(TileMap& map) const {
        map.at(x, y) = newTile;
    }

    void undo(TileMap& map) const {
        map.at(x, y) = oldTile;
    }
};

int main() {
    TileMap map(4, 3);
    map.at(1, 1) = 2;

    PaintTileCommand cmd{1, 1, map.at(1, 1), 9};

    std::cout << "Before edit: tile(1,1)=" << map.at(1, 1) << "\n";
    cmd.apply(map);
    std::cout << "After apply: tile(1,1)=" << map.at(1, 1) << "\n";
    cmd.undo(map);
    std::cout << "After undo: tile(1,1)=" << map.at(1, 1) << "\n";

    return 0;
}
```

Fill in the blank: A chunk or map region that has been edited and needs to be saved, rebuilt, or re-exported is commonly called a ______ chunk.

Saving is a pipeline, not a button

Clicking Save should trigger a controlled workflow. This matters because maps are shared assets: the client renders them, the server may validate movement against them, and future tools will attach more data to them.

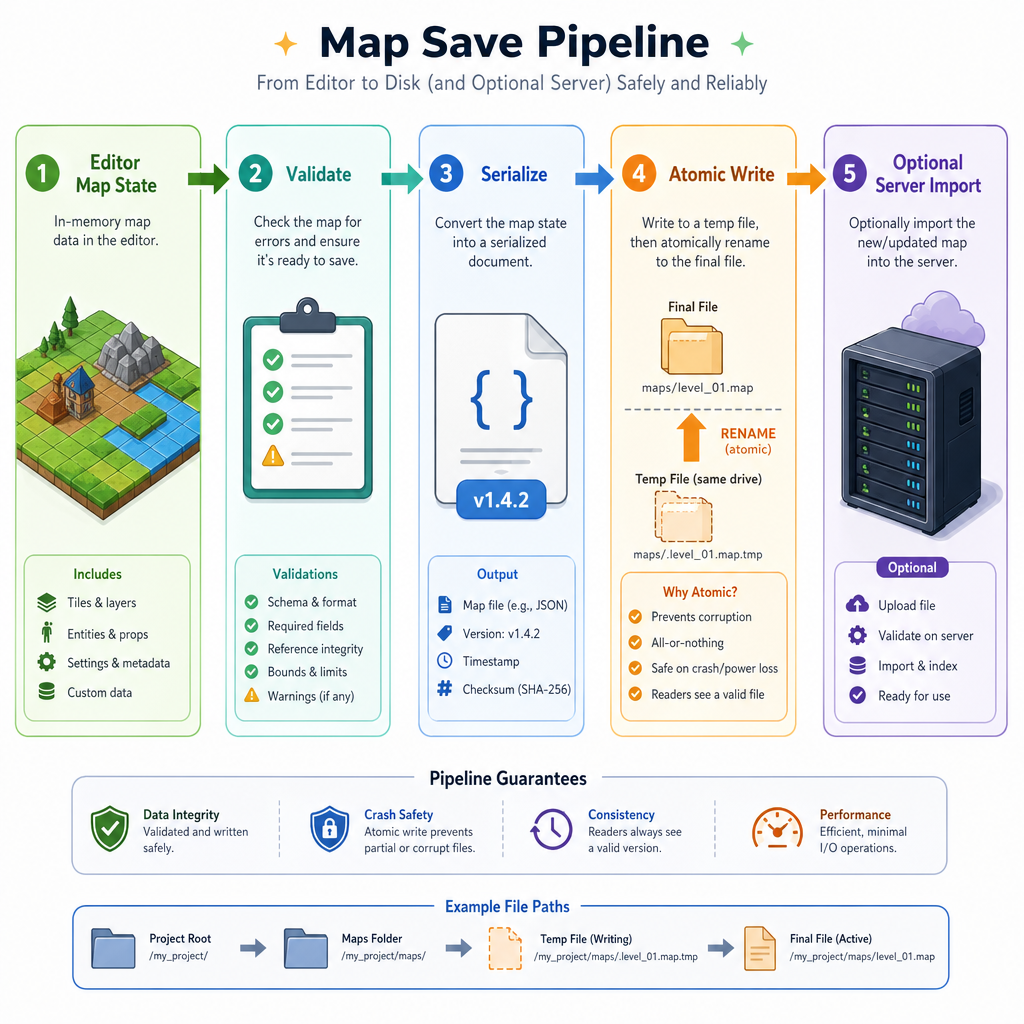

A practical save/export pipeline:

Editor Map State
   │
   ▼
Validate
- bounds are valid
- required layers exist
- tile IDs exist in asset database
- collision layer uses legal values
   │
   ▼
Serialize
- stable version number
- dimensions and tile size
- layers
- metadata
   │
   ▼
Atomic Write
- write temp file
- flush/close
- rename over target
   │
   ▼
Optional Server Import
- offline load
- admin-only live reload
- deployment package

This is the same mindset from Lesson 5: Game Server - Persistence: do not casually corrupt important state. Prefer stable formats, explicit versions, and crash-safe writes.

For early development, a readable JSON-like format is excellent. Later, you can add a compact binary format if loading time or file size becomes a real measured problem.

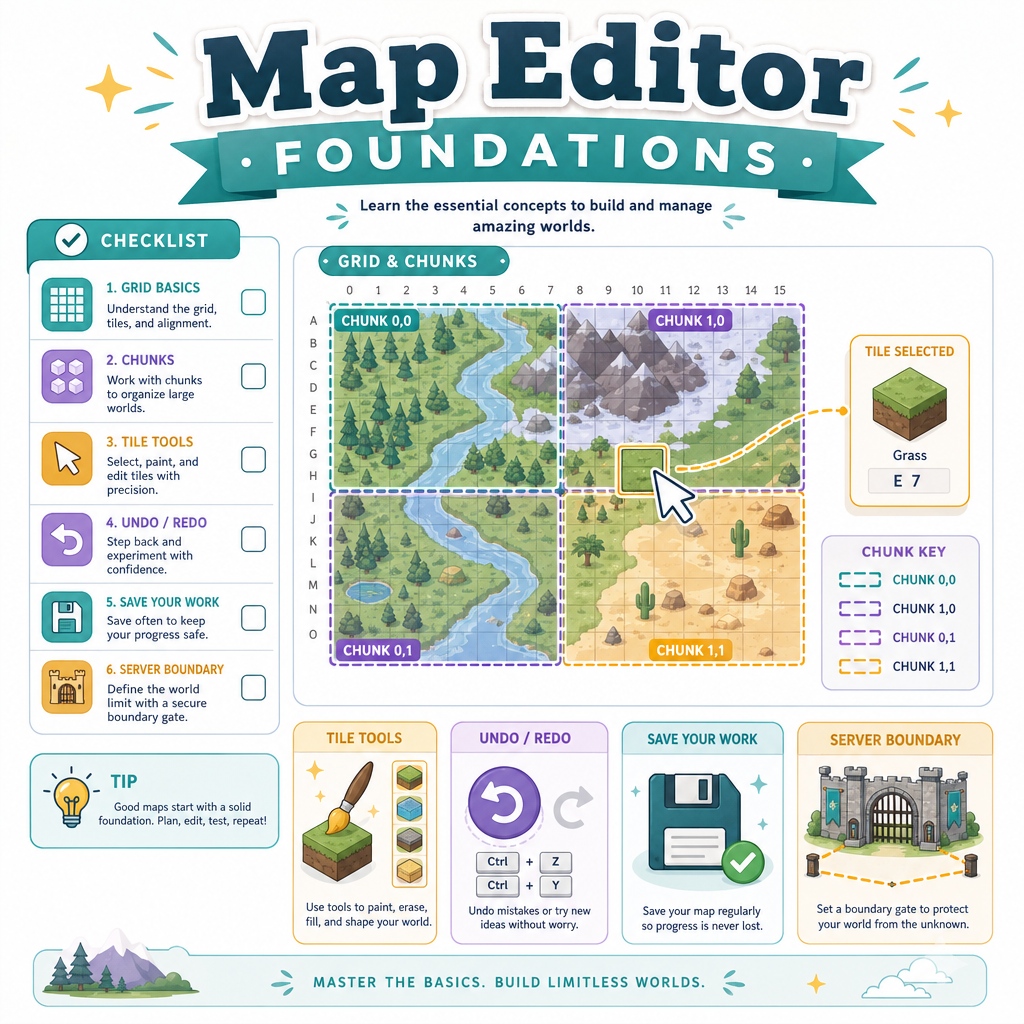

What you now have

You have moved from runtime infrastructure into creator tooling — a major step for an MMORPG from scratch.

A solid first map editor should include:

• MapEditorState as a distinct client state
• a tile/layer map representation
• screen-to-world-to-tile picking
• brush tools that create edit commands
• undo support for common edits
• dirty chunk tracking
• validation before saving
• versioned serialization
• crash-safe writes
• a clear boundary before server import

The important design choice is that the editor is not a separate toy. It uses the same client foundations you already built: input, rendering, world data, assets, and state transitions.

In Lesson 8: Client Editor - Monster Editor, we will extend this tool mindset from terrain to spawn and monster placement data.
