Introduction to Algorithmic Trading

Welcome to the Introduction to Algorithmic Trading!

Algorithmic trading is the use of computer algorithms to automatically execute trading strategies in the financial markets. It has become increasingly popular due to its ability to execute trades quickly, efficiently, and without human emotion. Algorithmic trading can be used to take advantage of market inefficiencies, reduce costs, and manage risks.

In this lesson, we will explore the basic concepts of algorithmic trading and its importance in the financial markets.

xxxxxxxxxx

#include <iostream>

using namespace std;

​

int main() {

  cout << "Welcome to the Introduction to Algorithmic Trading!" << endl;

  cout << "Algorithmic trading is the use of computer algorithms to automatically execute trading strategies in the financial markets" << endl;

  cout << "It has become increasingly popular due to its ability to execute trades quickly, efficiently, and without human emotion" << endl;

  cout << "Algorithmic trading can be used to take advantage of market inefficiencies, reduce costs, and manage risks" << endl;

  cout << "In this lesson, we will explore the basic concepts of algorithmic trading and its importance in the financial markets" << endl;

​

  return 0;

}

Welcome to the Basic Concepts of Algorithmic Trading!

In algorithmic trading, it is important to understand various key concepts such as market data, order types, and execution strategies.

Market data refers to the information about the financial markets, including prices, volumes, and other related data. Traders use market data to analyze and make decisions in algorithmic trading.

Order types determine how trades are executed in the financial markets. Some common order types include market orders, limit orders, and stop orders. Traders need to understand the characteristics and uses of different order types in algorithmic trading.

Execution strategies are methods used to execute trades in the financial markets. They can be based on time, price, volume, or other factors. Traders design and implement execution strategies to achieve their trading goals.

In this lesson, we will dive deeper into these key concepts and explore how they are applied in algorithmic trading.

xxxxxxxxxx

#include <iostream>

​

using namespace std;

​

int main() {

  cout << "Welcome to the Basic Concepts of Algorithmic Trading!" << endl;

  // Explaining key concepts

  cout << "In algorithmic trading, it is important to understand various key concepts such as market data, order types, and execution strategies." << endl;

  // Mentioning market data

  cout << "Market data refers to the information about the financial markets, including prices, volumes, and other related data. Traders use market data to analyze and make decisions in algorithmic trading." << endl;

  // Mentioning order types

  cout << "Order types determine how trades are executed in the financial markets. Some common order types include market orders, limit orders, and stop orders. Traders need to understand the characteristics and uses of different order types in algorithmic trading." << endl;

  // Mentioning execution strategies

  cout << "Execution strategies are methods used to execute trades in the financial markets. They can be based on time, price, volume, or other factors. Traders design and implement execution strategies to achieve their trading goals." << endl;

  // Conclusion

  cout << "In this lesson, we will dive deeper into these key concepts and explore how they are applied in algorithmic trading." << endl;

  return 0;

}

Welcome to the Technical Analysis in Algorithmic Trading!

Technical analysis plays a crucial role in algorithmic trading. It involves the use of various technical indicators to analyze historical market data and make decisions. These indicators are mathematical calculations that provide insights into market trends and help traders identify potential trading opportunities.

One commonly used technical indicator is the Simple Moving Average (SMA). It calculates the average price of an asset over a specific period of time. The formula is straightforward: sum the prices over the period and divide by the number of periods.

Here's an example of how to calculate the Simple Moving Average in C++:

1#include <iostream>
2
3// Function to calculate the Simple Moving Average
4double sma(int period, double* prices) {
5  double sum = 0;
6  for (int i = 0; i < period; i++) {
7    sum += prices[i];
8  }
9  return sum / period;
10}
11
12int main() {
13  double prices[] = {100.0, 105.0, 110.0, 115.0, 120.0};
14  int period = 5;
15  double movingAverage = sma(period, prices);
16  std::cout << "Simple Moving Average: " << movingAverage << std::endl;
17  return 0;
18}

Another popular technical indicator is the Exponential Moving Average (EMA). It gives more weight to recent prices and is often used to identify short-term trends. The formula for calculating EMA involves a smooth factor called alpha, which determines the weight of each price in the calculation.

Here's an example of how to calculate the Exponential Moving Average in C++:

1#include <iostream>
2
3// Function to calculate the Exponential Moving Average
4double ema(int period, double* prices) {
5  double alpha = 2.0 / (period + 1);
6  double ema = prices[0];
7  for (int i = 1; i < period; i++) {
8    ema = alpha * prices[i] + (1 - alpha) * ema;
9  }
10  return ema;
11}
12
13int main() {
14  double prices[] = {100.0, 105.0, 110.0, 115.0, 120.0};
15  int period = 5;
16  double exponentialMovingAverage = ema(period, prices);
17  std::cout << "Exponential Moving Average: " << exponentialMovingAverage << std::endl;
18  return 0;
19}

These are just two examples of technical analysis indicators. There are many more indicators available, each with its own mathematical calculation and interpretation. Traders use these indicators to gain insights into market trends and make informed decisions in algorithmic trading.

xxxxxxxxxx

}

#include <iostream>

​

int main() {

  // Technical analysis indicators

  double sma(int period, double* prices) {

    double sum = 0;

    for (int i = 0; i < period; i++) {

      sum += prices[i];

    }

    return sum / period;

  }

​

  double ema(int period, double* prices) {

    double alpha = 2.0 / (period + 1);

    double ema = prices[0];

    for (int i = 1; i < period; i++) {

      ema = alpha * prices[i] + (1 - alpha) * ema;

    }

    return ema;

  }

​

  // Example usage

  int main() {

    double prices[] = {100.0, 105.0, 110.0, 115.0, 120.0};

    int period = 5;

    double movingAverage = sma(period, prices);

    double exponentialMovingAverage = ema(period, prices);

    std::cout << "Simple Moving Average: " << movingAverage << std::endl;

    std::cout << "Exponential Moving Average: " << exponentialMovingAverage << std::endl;

Building Trading Strategies

Designing and implementing effective trading strategies is a key aspect of algorithmic trading. A trading strategy outlines the criteria and rules for making investment decisions, aiming to generate profitable trades.

In building trading strategies, various factors need to be considered, such as market conditions, risk tolerance, and investment goals. It requires a deep understanding of financial markets and technical analysis techniques.

Let's consider an example of a simple trading strategy based on the Simple Moving Average (SMA) crossover.

The SMA crossover strategy involves using two moving averages of different lengths: a shorter period SMA and a longer period SMA. When the shorter period SMA crosses above the longer period SMA, it generates a buy signal, indicating the potential for an upward trend. Conversely, when the shorter period SMA crosses below the longer period SMA, it generates a sell signal, indicating the potential for a downward trend.

Here's an example of how to implement a Simple Moving Average crossover strategy in C++:

1#include <iostream>
2
3int main() {
4  // Design and implement trading strategies here
5
6  // Example: Simple Moving Average crossover strategy
7  double prices[] = {100.0, 105.0, 110.0, 115.0, 120.0};
8  int shortPeriod = 5;
9  int longPeriod = 10;
10
11  double shortSMA = 0;
12  for (int i = 0; i < shortPeriod; i++) {
13    shortSMA += prices[i];
14  }
15  shortSMA /= shortPeriod;
16
17  double longSMA = 0;
18  for (int i = 0; i < longPeriod; i++) {
19    longSMA += prices[i];
20  }
21  longSMA /= longPeriod;
22
23  if (shortSMA > longSMA) {
24    std::cout << "Buy signal!" << std::endl;
25  } else {
26    std::cout << "Sell signal!" << std::endl;
27  }
28
29  return 0;
30}

This example calculates the Simple Moving Averages (SMA) for a given set of prices and compares the values of the short period SMA and the long period SMA. The outcome determines whether a buy signal or a sell signal is generated.

Keep in mind that this is just a simple example to illustrate the concept of a trading strategy. In practice, trading strategies can be much more complex, incorporating various indicators, risk management techniques, and additional criteria.

Building effective trading strategies requires a combination of domain knowledge, technical analysis skills, and data analysis. It is an ongoing process that involves backtesting, optimization, and continuous evaluation of performance.

Next, we will explore the process of backtesting and optimization to refine trading strategies.

xxxxxxxxxx

}

#include <iostream>

​

int main() {

  // Design and implement trading strategies here

​

  // Example: Simple Moving Average crossover strategy

  double prices[] = {100.0, 105.0, 110.0, 115.0, 120.0};

  int shortPeriod = 5;

  int longPeriod = 10;

​

  double shortSMA = 0;

  for (int i = 0; i < shortPeriod; i++) {

    shortSMA += prices[i];

  }

  shortSMA /= shortPeriod;

​

  double longSMA = 0;

  for (int i = 0; i < longPeriod; i++) {

    longSMA += prices[i];

  }

  longSMA /= longPeriod;

​

  if (shortSMA > longSMA) {

    std::cout << "Buy signal!" << std::endl;

  } else {

    std::cout << "Sell signal!" << std::endl;

  }

​

  return 0;

Backtesting and Optimization

Backtesting is the process of testing a trading strategy using historical data to evaluate its performance. It helps determine the viability and profitability of a trading strategy before using it in live trading.

In algorithmic trading, backtesting involves simulating trades using historical price data and keeping track of the hypothetical profits and losses. This allows traders to assess the potential risks and returns associated with the strategy.

Optimization is the process of improving a trading strategy by adjusting its parameters and rules. The goal is to find the optimal combination of parameters that maximizes profitability or minimizes risk.

Let's consider an example of backtesting and optimization for a simple trading strategy based on stop loss and take profit levels.

1#include <iostream>
2
3using namespace std;
4
5int main() {
6  // Define historical data
7  double prices[] = {100.0, 105.0, 110.0, 115.0, 120.0};
8
9  // Define trading strategy
10  double stopLoss = 5.0;
11  double takeProfit = 10.0;
12
13  // Perform backtesting
14  double initialBalance = 1000.0;
15  double balance = initialBalance;
16
17  for (int i = 1; i < sizeof(prices) / sizeof(prices[0]); i++) {
18    double priceChange = prices[i] - prices[i - 1];
19
20    if (priceChange < -stopLoss) {
21      balance -= stopLoss;
22    } else if (priceChange > takeProfit) {
23      balance += takeProfit;
24    }
25  }
26
27  // Output final balance
28  cout << "Final balance: $" << balance << endl;
29
30  return 0;
31}

In this example, we define a trading strategy that uses a stop loss of $5 and a take profit of $10. We simulate trades by iterating over the historical price data and checking if the price change exceeds the stop loss or take profit levels. The balance is updated accordingly, and the final balance is outputted.

Backtesting and optimization are iterative processes. Traders often perform multiple rounds of backtesting, adjusting parameters and rules, and evaluating the results to improve the strategy's performance.

By backtesting and optimizing trading strategies, traders can gain valuable insights into the strategy's historical performance and make informed decisions when implementing it in live trading.

xxxxxxxxxx

}

#include <iostream>

​

using namespace std;

​

int main() {

  // Define historical data

  double prices[] = {100.0, 105.0, 110.0, 115.0, 120.0};

​

  // Define trading strategy

  double stopLoss = 5.0;

  double takeProfit = 10.0;

​

  // Perform backtesting

  double initialBalance = 1000.0;

  double balance = initialBalance;

​

  for (int i = 1; i < sizeof(prices) / sizeof(prices[0]); i++) {

    double priceChange = prices[i] - prices[i - 1];

​

    if (priceChange < -stopLoss) {

      balance -= stopLoss;

    } else if (priceChange > takeProfit) {

      balance += takeProfit;

    }

  }

​

  // Output final balance

  cout << "Final balance: $" << balance << endl;

​

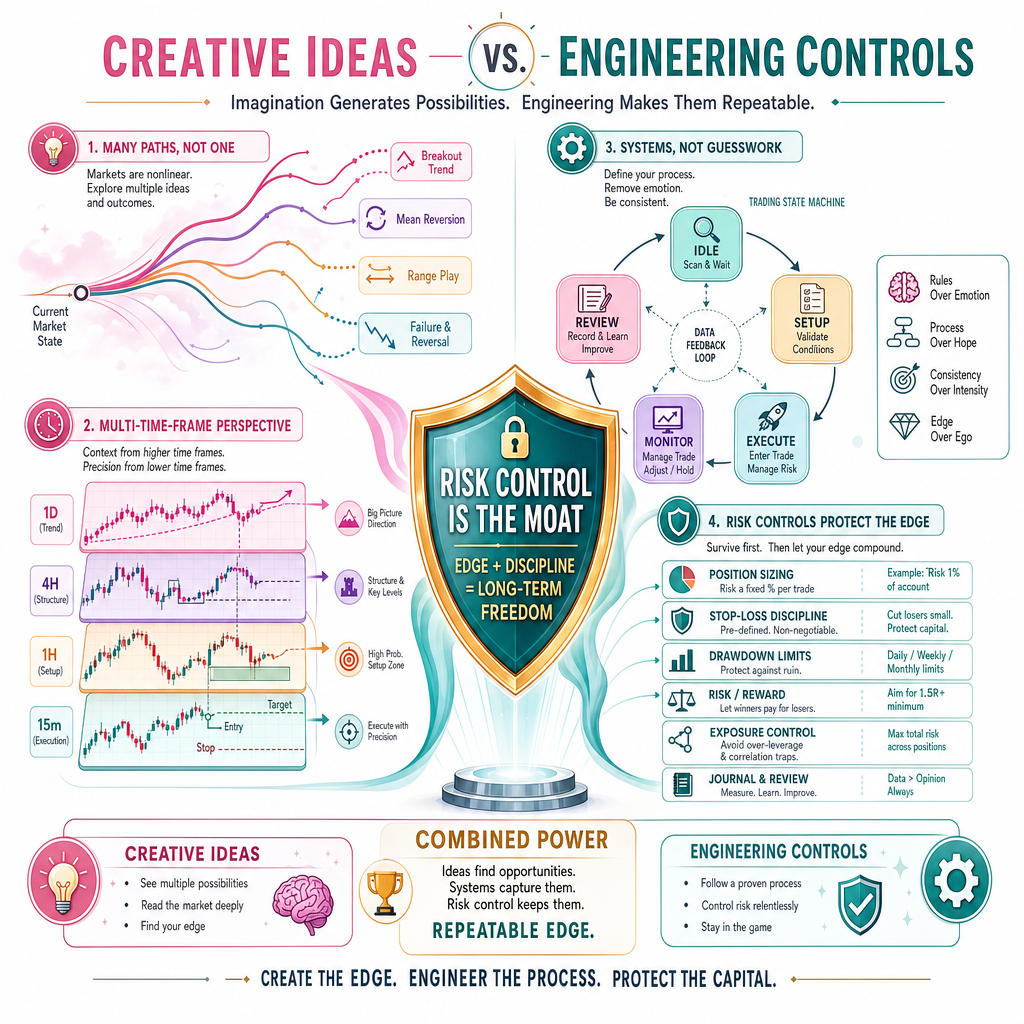

Risk Management in Algorithmic Trading

Risk management plays a crucial role in algorithmic trading to mitigate potential losses and protect capital. It involves identifying and assessing risks, as well as implementing strategies to minimize their impact.

Just like in any other form of trading or investment, algorithmic trading involves inherent risks. These risks can arise from various factors such as market volatility, execution errors, technical issues, and unexpected events. Therefore, it is essential to implement risk management techniques to secure and optimize trading outcomes.

By employing effective risk management strategies, traders can safeguard their investment capital and improve the overall performance of their algorithmic trading strategies.

Here are some common risk management techniques used in algorithmic trading:

• Position sizing: Determining the appropriate size of each trade based on risk tolerance and account equity. Position sizing ensures that no single trade has the potential to significantly impact the overall portfolio.

• Stop-loss orders: Setting predefined price levels at which a trade will be automatically closed to limit losses. Stop-loss orders help to protect against adverse market movements and minimize potential losses.

• Diversification: Spreading investments across different assets, markets, or strategies to minimize the impact of any single trade or event. Diversification helps to reduce concentration risk and increases the resilience of the portfolio.

• Risk/reward ratio: Assessing the potential risk and reward of a trade before entering it. By maintaining a favorable risk/reward ratio, traders aim to ensure that potential profits outweigh potential losses.

• Monitoring and analysis: Regularly monitoring the performance of the algorithmic trading strategies and analyzing key metrics, such as drawdowns and risk-adjusted returns. This helps traders identify any potential issues or areas for improvement.

Implementing these risk management techniques requires a systematic and disciplined approach. Traders need to have a clear understanding of their risk tolerance, trading objectives, and evaluation criteria.

To give you an example, consider the following code snippet in C++ that demonstrates the implementation of position sizing and stop-loss orders:

1#include <iostream>
2
3using namespace std;
4
5int main() {
6  double accountBalance = 10000.0;
7  double riskPercentage = 1.0;
8  double tradeSize = (accountBalance * riskPercentage) / 100.0;
9
10  double stopLossLevel = 5.0;
11  double entryPrice = 100.0;
12  double stopLossPrice = entryPrice - stopLossLevel;
13
14  cout << "Trade Size: $" << tradeSize << endl;
15  cout << "Stop Loss Price: $" << stopLossPrice << endl;
16
17  return 0;
18}

In this example, we define variables such as accountBalance, riskPercentage, tradeSize, stopLossLevel, entryPrice, and stopLossPrice to calculate the position size and stop loss price. The position size is determined based on the specified risk percentage and account balance, while the stop loss price is calculated by subtracting the stop loss level from the entry price.

Remember, risk management is a continuous process that requires adaptation and adjustment as market conditions and trading strategies evolve. Traders should regularly review and refine their risk management practices to ensure its effectiveness.

Real-Time Trading and API Integration

Real-time trading involves executing trades based on real-time market data. It allows traders to take advantage of immediate market movements and react quickly to changing conditions.

API integration is an essential part of real-time trading, as it enables the connection between trading platforms and external data sources. APIs (Application Programming Interfaces) provide a standardized way for applications to communicate with each other and exchange data. In the context of algorithmic trading, APIs are used to access real-time market data and execute trades.

To work with real-time market data and integrate trading algorithms with APIs, we can use programming languages like C++. C++ provides robust support for networking and low-level operations, making it well-suited for real-time trading applications.

Here's an example C++ code that demonstrates real-time trading and API integration:

1#include <iostream>
2#include <string>
3#include <vector>
4
5using namespace std;
6
7struct PriceData {
8  string symbol;
9  double price;
10};
11
12struct TradeData {
13  string symbol;
14  double quantity;
15  double price;
16  string side;
17};
18
19class RealTimeTradingAPI {
20public:
21  void connect() {
22    // Connect to the real-time trading API
23    cout << "Connected to real-time trading API!" << endl;
24  }
25
26  vector<PriceData> getRealTimePrices(vector<string> symbols) {
27    // Retrieve real-time prices for the given symbols
28    vector<PriceData> prices;
29    // Logic for retrieving real-time prices
30    return prices;
31  }
32
33  void placeTrade(TradeData trade) {
34    // Place a trade using the given trade data
35    // Logic for placing a trade
36    cout << "Trade placed!" << endl;
37  }
38
39  void disconnect() {
40    // Disconnect from the real-time trading API
41    cout << "Disconnected from real-time trading API!" << endl;
42  }
43};
44
45int main() {
46  RealTimeTradingAPI api;
47  api.connect();
48
49  vector<string> symbols = {"AAPL", "GOOGL", "AMZN"};
50  vector<PriceData> prices = api.getRealTimePrices(symbols);
51  cout << "Real-Time Prices:" << endl;
52  for (const auto& price : prices) {
53    cout << price.symbol << ": $" << price.price << endl;
54  }
55
56  TradeData trade;
57  trade.symbol = "AAPL";
58  trade.quantity = 10;
59  trade.price = 150.0;
60  trade.side = "Buy";
61
62  api.placeTrade(trade);
63
64  api.disconnect();
65
66  return 0;
67}

xxxxxxxxxx

}

#include <iostream>

#include <string>

#include <vector>

​

using namespace std;

​

struct PriceData {

  string symbol;

  double price;

};

​

struct TradeData {

  string symbol;

  double quantity;

  double price;

  string side;

};

​

class RealTimeTradingAPI {

public:

  void connect() {

    // Connect to the real-time trading API

    cout << "Connected to real-time trading API!" << endl;

  }

​

  vector<PriceData> getRealTimePrices(vector<string> symbols) {

    // Retrieve real-time prices for the given symbols

    vector<PriceData> prices;

    // Logic for retrieving real-time prices

Performance Evaluation and Monitoring

Measuring and evaluating the performance of trading algorithms is a crucial step in algorithmic trading. It helps traders assess the effectiveness and profitability of their strategies.

There are several performance metrics that can be used to evaluate trading algorithms. Some commonly used metrics include:

• Return on Investment (ROI): This metric measures the profitability of the trading strategy by calculating the percentage return on the invested capital.

• Sharpe Ratio: The Sharpe Ratio measures the risk-adjusted return of the trading strategy. It takes into account both the returns and the volatility of the strategy.

• Max Drawdown: Max Drawdown is the maximum loss experienced by the trading strategy from its peak value to its lowest point. It indicates the risk associated with the strategy.

• Win-Loss Ratio: The Win-Loss Ratio calculates the ratio of winning trades to losing trades. It provides insights into the accuracy and effectiveness of the trading strategy.

To calculate these performance metrics, you can use historical trading data and compare the strategy's performance against a benchmark or other market indicators.

Here's an example C++ code that demonstrates calculating the performance metrics of a trading algorithm:

1#include <iostream>
2using namespace std;
3
4int main() {
5  // Calculate the performance metrics of your trading algorithm
6  // Replace with your C++ logic here
7}

xxxxxxxxxx

#include <iostream>

using namespace std;

​

int main() {

  // Calculate the performance metrics of your trading algorithm

  // Replace with your C++ logic here

}
