Good evening! Here's our prompt for today.

Write a method to determine how deep a binary tree goes. The tree's depth can be described as the number of nodes you encounter as you traverse from the root node to a leaf.

The root node is the topmost node, and a leaf is a node with no children.

For example, you're given the following binary tree:

JAVASCRIPT
1    6
2   / \
3  2  14
4    /  \
5   13   19

The longest distance is from 6 to 19, and we return 3 because it covers 3 nodes.

Description

The method will be invoked like the following:

JAVASCRIPT
1const root = new Node(6);
2
3function howDeep(root) {
4    return;
5};
6
7howDeep(root);

Constraints

  • Number of nodes in the tree <= 100000
  • The nodes will always contain integer values between -1000000000 and 1000000000
  • Expected time complexity : O(logn)
  • Expected space complexity : O(n) considering the call stack

Try to solve this here or in Interactive Mode.

How do I practice this challenge?

JAVASCRIPT
OUTPUT
:001 > Cmd/Ctrl-Enter to run, Cmd/Ctrl-/ to comment

Here's how we would solve this problem...

How do I use this guide?

This seems like a pretty straightforward problem: we essentially want to just count the maximum number of levels that the tree has. There's several ways to do this, but we'll need to traverse the tree.

Given that it's a binary tree, this means that there's up to two paths to move -- left and right. This fact simplifies things a bit, as traversal just requires navigating two children at each node.

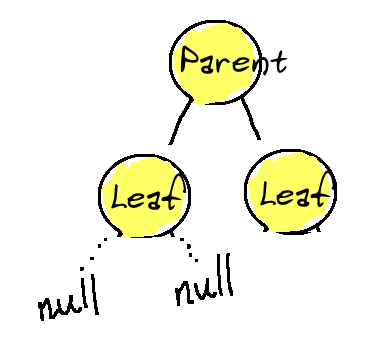

During traversal, we can detect a leaf either when there is no left or right:

JAVASCRIPT
OUTPUT
:001 > Cmd/Ctrl-Enter to run, Cmd/Ctrl-/ to comment

Or we could simply return when there is no node at all.

JAVASCRIPT
OUTPUT
:001 > Cmd/Ctrl-Enter to run, Cmd/Ctrl-/ to comment

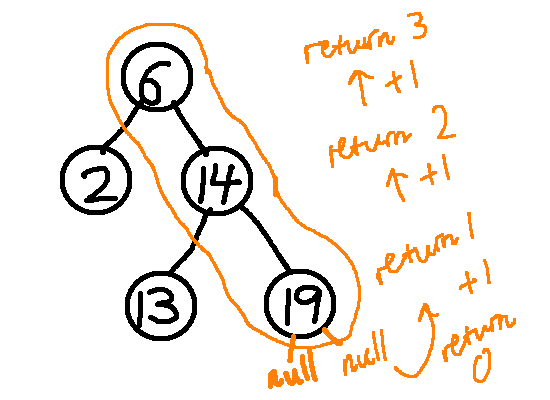

At every node, we can recursively traverse down the left and right children if they exist, until we reach a leaf.

The difficult part is keeping track of the number of levels.

To do that, we can make the return statement the number of levels thus far, and increment it by 1 at every step.

This solution has a time complexity O(log n).

One Pager Cheat Sheet

  • Write a method to calculate the depth of a binary tree using O(logn) time complexity and O(n) space complexity.
  • We can traverse the binary tree to count its maximum levels by navigating two children at each node and detecting a leaf when a left or right does not exist.
  • We can return when there is no node present.
  • We can recursively traverse down the left and right children of each node until we reach a leaf, returning the number of levels traversed and with a time complexity of O(log n).

This is our final solution.

To visualize the solution and step through the below code, click Visualize the Solution on the right-side menu or the VISUALIZE button in Interactive Mode.

JAVASCRIPT
OUTPUT
:001 > Cmd/Ctrl-Enter to run, Cmd/Ctrl-/ to comment
