Introduction

Data partitioning refers to the act of splitting a large database or dataset into smaller, more manageable parts called partitions. It is an important concept in designing large-scale distributed systems that need to handle tremendous amounts of data and traffic.

In this article, we will look at why data partitioning matters, different partitioning strategies, real-world examples, tools to manage partitions, and some best practices when implementing partitioning in a systems design. Understanding partitioning techniques can help software architects and engineers build more scalable, performant, and fault-tolerant systems.

Basics of Data Partitioning

Partitioning refers to splitting a logical database across multiple physical databases, each hosted on a separate server instance. This allows distributing the data across multiple machines while making it appear as one logical database to applications and users.

The main drivers for partitioning data are scalability, performance, and availability. By splitting a database into smaller parts, it is easy to scale out across low-cost commodity servers as data grows or workload increases. Load can be balanced intelligently across servers, and failures can be isolated. Overall, it helps in reducing contention and improving throughput.

Types of Data Partitioning

There are a few common ways databases and other data stores partition data across clusters:

Horizontal Partitioning (Sharding)

This refers to putting different rows of data in different tables or databases. For example, a users table with millions of rows could be split across multiple "shards" (tables) based on user IDs or regions. Reads and writes can scale as shards are added.

Sharding is commonly used by web-scale companies like Facebook to distribute user data across databases. The downside is that joins and transactions across shards become challenging.

Vertical Partitioning

Here, different columns of a table are stored separately. For example, frequently accessed columns like UserID can be put in one table while less frequently accessed columns like Address are put in a separate table.

This makes sense when some columns are accessed much more than others. However, database joins become expensive. Vertical partitioning is losing favor compared to sharding.

Directory-Based Partitioning

A lookup service or directory is used to divide data across nodes. For example, a hash function assigns a partition key to each data item which is then used to lookup the database node where it is stored.

This provides transparency to applications since the lookup abstraction hides the physical data placement. However, the lookup service can become a bottleneck.

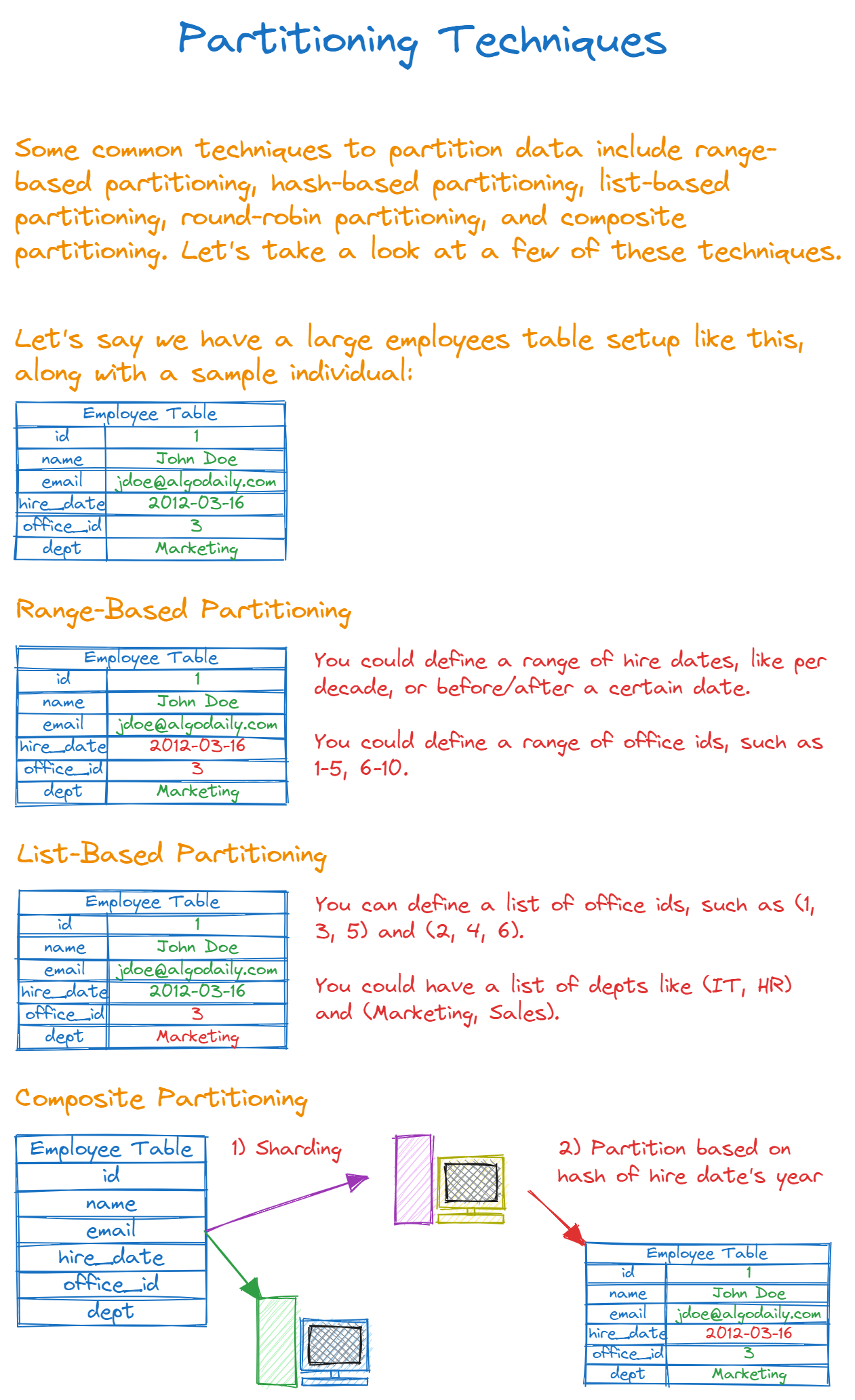

Key Strategies for Data Partitioning

Some commonly used techniques to determine data placement across partitions:

Range-Based Partitioning

Data is partitioned based on ranges of the values of a column like date or timestamp. For example, a table of sales data may be partitioned by date so that each partition contains one year of sales data.

Hash-Based Partitioning

A hash function is applied to some key or column to determine the partition where a particular data item will reside. For example, if we hash-partition a users table based on user_id, all users with the same hash(user_id) will be in the same partition.

Re-balancing loads across partitions is easy since the hash function doesn't change. The problem arises when the hash function results in skew.

List-Based Partitioning

Each partition is assigned a list of values, and any record whose partitioning key exists in the list will be stored in that partition. For example, data centers can be used to list-partition customer data based on regions.

Round-robin Partitioning

Data is distributed sequentially among available partitions as it comes in. It provides uniform data distribution but querying becomes complex without a lookup directory.

Composite Partitioning

Combinations of partitioning techniques can be applied. For example, first horizontally sharding a table then range-partitioning each shard further improves scalability.

Challenges in Data Partitioning

Some considerations when deciding data partitioning schemes:

• Hotspots and skew when some partitions have excessive load need intelligent assignment of records to partitions.

• Rebalancing existing data when nodes are added/removed requires redistributing data.

• Joins and data consistency become harder across shards.

• Physical network partitions can isolate data partitions, so fault tolerance must be built-in.

Real-world Examples & Systems

Many data systems and services use partitioning to scale. Some examples:

Databases

• Cassandra and MongoDB scale out by horizontally partitioning database rows across nodes.

• MySQL and SQL Server provide in-built partitioning schemes like hash/range partitioning for large tables.

Big Data Systems

• Hadoop HDFS and HBase use partitioning to distribute big data workloads across commodity machines.

Web Services

• Google Spanner automatically shards data across globe-spanning data centers.

• Amazon DynamoDB partitions data across SSDs for performance.

Streaming Platforms

• Kafka employs partitioning of topics across brokers to distribute message streams.

Tools and Software

There are various database tools and technologies to help manage partitioning:

• Sharding libraries and frameworks like Hibernate Shards.

• Databaseaware load balancers for routing queries.

• Rebalancing and auto-sharding tools.

• Monitoring dashboards providing insights into data distribution.

Best Practices

Some tips for effective data partitioning:

• Plan partitioning schemes early for future scaling needs.

• Partition by the most common query patterns.

• Monitor load on each partition and rebalance periodically.

• Test failure scenarios and system behavior during network partitions.

• Abstract physical partitions behind APIs for decoupling.

Conclusion

Data partitioning enables building internet-scale distributed systems by improving manageability, performance and availability. Combining various partitioning schemes and managing partitions effectively is key to scalable system design.

One Pager Cheat Sheet

• The article discusses the importance of data partitioning, the process of dividing a large database or dataset into smaller, manageable partitions, highlighting its relevance in designing large-scale distributed systems, various strategies, real-world applications, management tools, and best practices.
• Data partitioning involves splitting a logical database across multiple physical databases on different server instances, improving scalability, performance, and availability by enabling distribution of data across multiple machines, intelligent load balancing, and isolation of failures, thus reducing contention and improving throughput.
• The article describes three common types of data partitioning: Horizontal Partitioning (Sharding), where different rows of data are stored in separate tables or databases; Vertical Partitioning, which splits different columns of a table into separate tables; and Directory-Based Partitioning, where a lookup service divides data across nodes based on a partition key.
• The article discusses different strategies for data partitioning, including Range-Based Partitioning where data is divided based on ranges such as date or timestamp, Hash-Based Partitioning that uses a hash function to determine data placement, List-Based Partitioning where each partition is assigned a list of values, Round-robin Partitioning for sequential data distribution, and Composite Partitioning that applies combinations of partitioning techniques.
• The statement is incorrect due to the assertion that hash-based partitioning uses a date range, but in reality it uses a hash function applied to a specific key to dictate data partitioning, rather than a range of values, a method instead used in range-based partitioning.
• Data partitioning has several challenges including dealing with hotspots and skew, rebalancing data when nodes are added/removed, maintaining data consistency and joins across shards, and ensuring fault tolerance for possible physical network partitions.
• Many data systems and services, such as databases (Cassandra, MongoDB, MySQL, SQL Server), Big Data Systems (Hadoop HDFS, HBase), Web Services (Google Spanner, Amazon DynamoDB), and Streaming Platforms (Kafka) use partitioning to scale, either by distributing database rows, using in-built partitioning schemes, distributing big data workloads, sharding data, or distributing message streams.
• There are numerous database tools and technologies available for managing partitioning, including sharding libraries and frameworks, databaseaware load balancers, rebalancing and auto-sharding tools, and monitoring dashboards.
• For effective data partitioning, plan partitioning schemes early, partition by the common query patterns, monitor and rebalance load on each partition, test failure scenarios and network partitions, and abstract partitions behind APIs for decoupling.
• Data partitioning enhances the construction of internet-scale distributed systems by boosting manageability, performance and availability, with effective management and combination of different partitioning schemes being critical for scalable system design.
