Welcome to the lesson on Introduction to Data Structures!

In this lesson, we will give a brief overview of data structures on a theoretical level. Data structures are essential in software development as they allow us to organize and manipulate data efficiently.

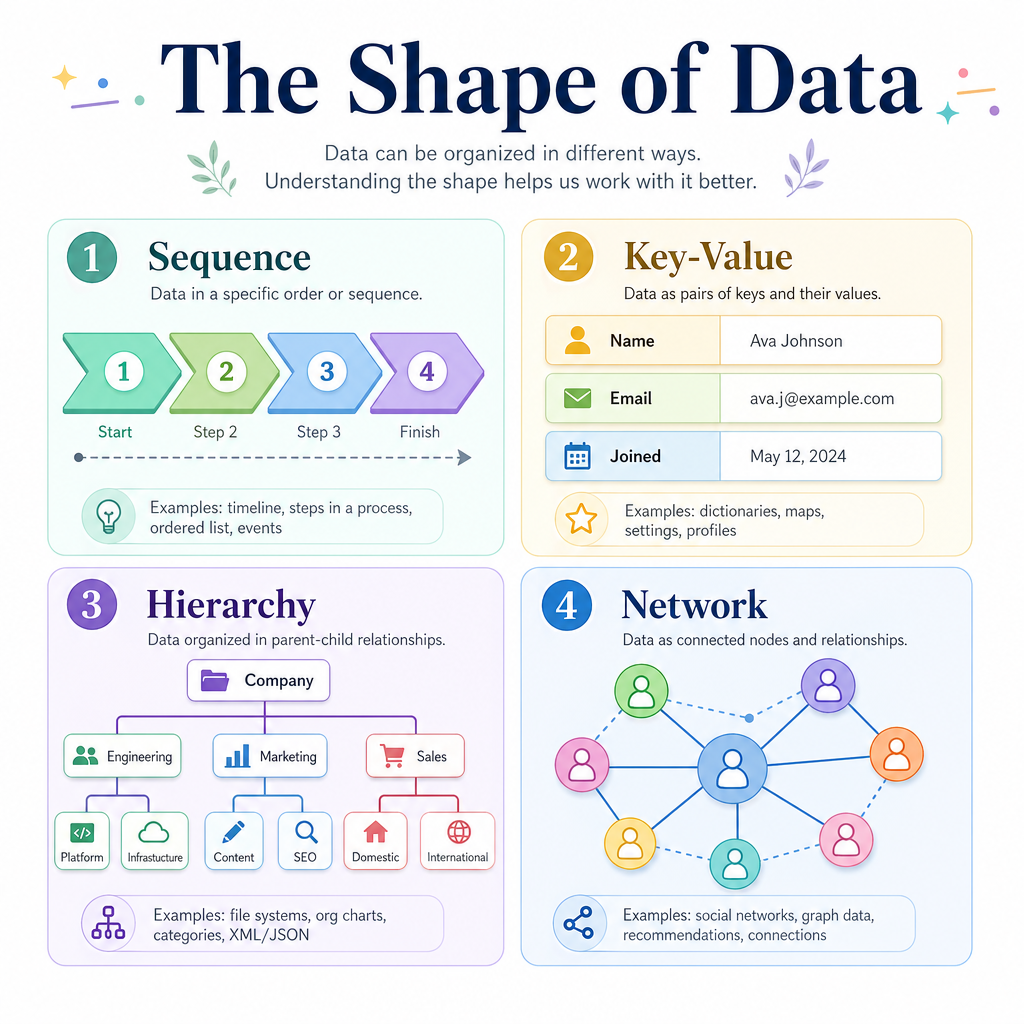

Data structures provide a way to represent and store data in a structured manner. They help us perform operations such as insertion, deletion, and searching with optimal time complexity.

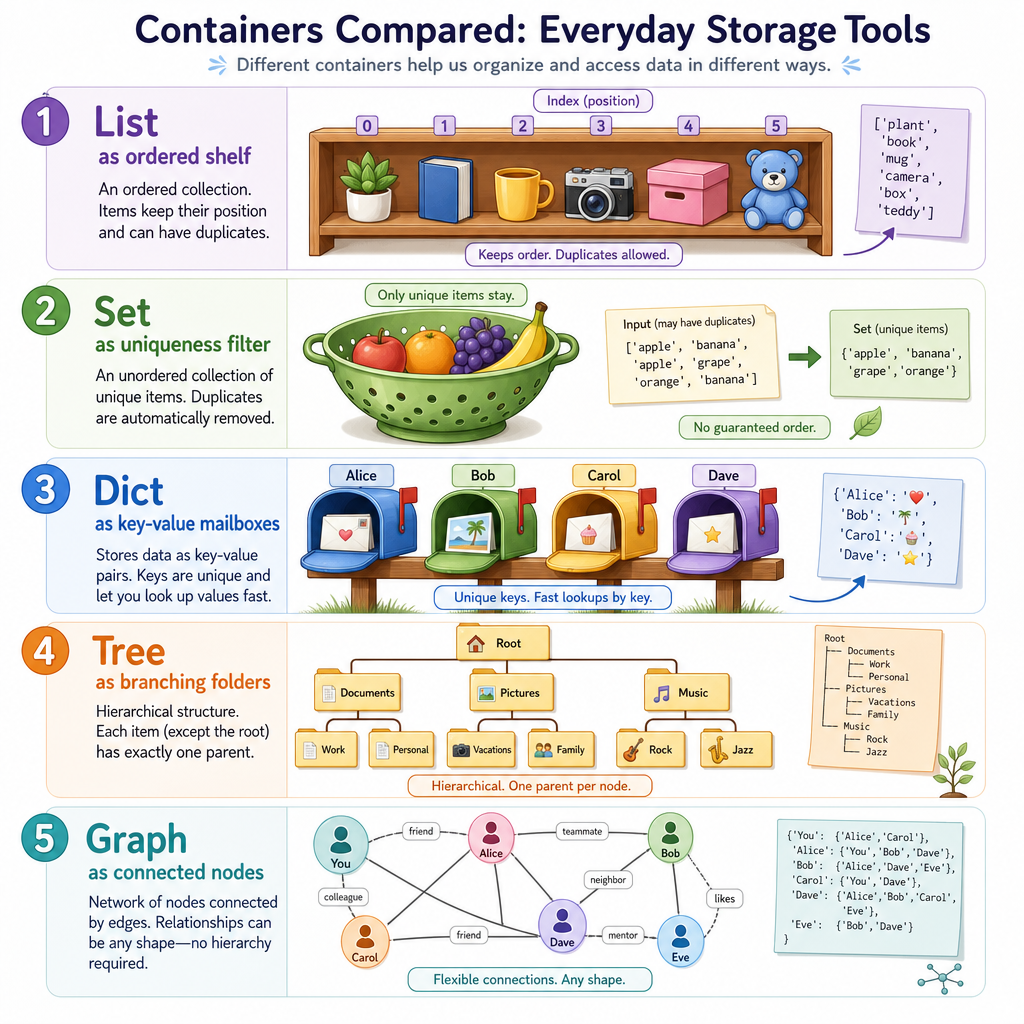

Throughout this course, we will explore various data structures such as arrays, linked lists, stacks, queues, trees, graphs, and hash tables. Each data structure has its own characteristics and applications.

By understanding different data structures, you will be able to solve complex problems and optimize your code.

Let's get started with the basics of data structures!

xxxxxxxxxx

if __name__ == "__main__":

  # Python logic here

  print("Data structures are essential in software development. They allow us to organize and manipulate data efficiently.")

  print("In this lesson, we will explore various data structures and their applications.")

Arrays: Introduction and Basic Operations

In the world of programming, arrays are one of the most commonly used data structures. They provide a way to store multiple values of the same type in a single variable.

Arrays are like a collection of boxes, each containing a value. You can think of a box in the array as an element. The elements in an array are indexed starting from 0, which means the first element is at index 0, the second element at index 1, and so on.

For example, consider the following array:

1const array = [1, 2, 3, 4, 5];

To access the first element of the array, you can use array[0]. In this case, it will return the value 1. Similarly, you can access other elements by specifying their index.

1const firstElement = array[0];
2console.log(firstElement); // Output: 1

Arrays also support updating elements. You can assign a new value to an element by using its index.

1array[2] = 10;
2console.log(array); // Output: [1, 2, 10, 4, 5]

The length property of an array gives you the number of elements it contains. You can access it using the length property.

1const length = array.length;
2console.log(length); // Output: 5

To iterate over an array, you can use a for loop. The loop condition should be i < array.length, and you can access the elements using array[i].

1for (let i = 0; i < array.length; i++) {
2  console.log(array[i]);
3}

You can add elements to the end of an array using the push method.

1array.push(6);
2console.log(array); // Output: [1, 2, 10, 4, 5, 6]

To remove the last element of an array, you can use the pop method. It removes the last element and returns it.

1const lastElement = array.pop();
2console.log(lastElement); // Output: 6
3console.log(array); // Output: [1, 2, 10, 4, 5]

xxxxxxxxxx

const array = [1, 2, 3, 4, 5];

​

// accessing an array element

const firstElement = array[0];

console.log(firstElement); // Output: 1

​

// updating an array element

array[2] = 10;

console.log(array); // Output: [1, 2, 10, 4, 5]

​

// finding the length of an array

const length = array.length;

console.log(length); // Output: 5

​

// iterating over an array

for (let i = 0; i < array.length; i++) {

  console.log(array[i]);

}

​

// adding an element at the end of an array

array.push(6);

console.log(array); // Output: [1, 2, 10, 4, 5, 6]

​

// removing the last element of an array

const lastElement = array.pop();

console.log(lastElement); // Output: 6

console.log(array); // Output: [1, 2, 10, 4, 5]

Linked Lists: Introduction and Advantages

In computer science, a linked list is a linear data structure made up of nodes, where each node contains a data element and a reference (link) to the next node in the sequence.

Unlike arrays, linked lists do not require contiguous memory locations to store elements. Instead, each node in a linked list contains a pointer/reference to the next node, which allows for efficient insertion and deletion of elements anywhere in the list.

Advantages of Linked Lists

• Dynamic Size: Linked lists can grow or shrink dynamically, allowing for efficient memory utilization.

• Insertion and Deletion: Adding or removing elements in a linked list can be done by adjusting the pointers, without the need for shifting elements as in arrays.

• Efficient Memory Allocation: Linked lists can use memory efficiently by allocating memory block based on the number of nodes. This makes linked lists suitable for systems with limited memory.

Implementation in Python

Here is an example implementation of a singly linked list in Python:

1if __name__ == '__main__':
2    class Node:
3        def __init__(self, data):
4            self.data = data
5            self.next = None
6
7    class LinkedList:
8        def __init__(self):
9            self.head = None
10
11        def append(self, data):
12            new_node = Node(data)
13            if self.head is None:
14                self.head = new_node
15            else:
16                current_node = self.head
17                while current_node.next:
18                    current_node = current_node.next
19                current_node.next = new_node
20
21        def print_list(self):
22            current_node = self.head
23            while current_node:
24                print(current_node.data, end=' ')
25                current_node = current_node.next
26
27    linked_list = LinkedList()
28    linked_list.append(1)
29    linked_list.append(2)
30    linked_list.append(3)
31    linked_list.print_list()

This implementation demonstrates how to create a linked list, append nodes to it, and print the list.

Try executing the above Python code to see the output.

xxxxxxxxxx

    linked_list.print_list()

if __name__ == '__main__':

    # Python code here

    class Node:

        def __init__(self, data):

            self.data = data

            self.next = None

​

    # Create the LinkedList class

    class LinkedList:

        def __init__(self):

            self.head = None

​

        def append(self, data):

            new_node = Node(data)

            if self.head is None:

                self.head = new_node

            else:

                current_node = self.head

                while current_node.next:

                    current_node = current_node.next

                current_node.next = new_node

​

        def print_list(self):

            current_node = self.head

            while current_node:

                print(current_node.data, end=' ')

                current_node = current_node.next

​

    # Usage example

Stacks

In computer science, a stack is an abstract data type that follows the Last-In, First-Out (LIFO) principle. Think of a stack of dishes. You can only add a new dish to the top of the stack, and you can only remove the dish that is currently on the top.

Stacks are commonly used to implement algorithms that require a last-in, first-out order. For example, function calls in a program are often stored in a stack. When a function is called, its information is pushed onto the stack, and when the function returns, its information is popped from the stack.

Here is an example of creating and manipulating a stack using a list in Python:

1if __name__ == '__main__':
2    # Create a stack using a list
3    stack = []
4
5    # Add elements to the stack
6    stack.append('A')
7    stack.append('B')
8    stack.append('C')
9
10    # Print the stack
11    print('Stack:', stack)
12
13    # Remove elements from the stack
14    print('Popped:', stack.pop())
15    print('Popped:', stack.pop())
16
17    # Print the stack after popping
18    print('Stack:', stack)

xxxxxxxxxx

    print('Queue:', queue)

if __name__ == '__main__':

    # Create a stack using a list

    stack = []

​

    # Add elements to the stack

    stack.append('A')

    stack.append('B')

    stack.append('C')

​

    # Print the stack

    print('Stack:', stack)

​

    # Remove elements from the stack

    print('Popped:', stack.pop())

    print('Popped:', stack.pop())

​

    # Print the stack after popping

    print('Stack:', stack)

​

    # Create a queue using a list

    queue = []

​

    # Add elements to the queue

    queue.append('X')

    queue.append('Y')

    queue.append('Z')

​

    # Print the queue

    print('Queue:', queue)

Trees

In computer science, a tree is a hierarchical data structure that consists of nodes connected by edges. It is similar to a family tree, where the nodes represent individuals and the edges represent relationships between them.

Trees have various applications in computer science, such as representing hierarchical data, organizing data for efficient search operations, and implementing algorithms like binary search.

A tree is composed of nodes, where each node contains data and may have zero or more child nodes. The topmost node of a tree is called the root node.

Here's an example of creating and traversing a tree in Python:

1if __name__ == '__main__':
2    class Node:
3        def __init__(self, data):
4            self.data = data
5            self.left = None
6            self.right = None
7
8    # Create a tree
9    root = Node('A')
10    root.left = Node('B')
11    root.right = Node('C')
12    root.left.left = Node('D')
13    root.left.right = Node('E')
14    root.right.left = Node('F')
15    root.right.right = Node('G')
16
17    # Perform tree traversal
18    def pre_order(node):
19        if node:
20            print(node.data, end=' ')
21            pre_order(node.left)
22            pre_order(node.right)
23
24    print('Pre-order: ', end='')
25    pre_order(root)
26
27    def in_order(node):
28        if node:
29            in_order(node.left)
30            print(node.data, end=' ')
31            in_order(node.right)
32
33    print('
34In-order: ', end='')
35    in_order(root)
36
37    def post_order(node):
38        if node:
39            post_order(node.left)
40            post_order(node.right)
41            print(node.data, end=' ')
42
43    print('
44Post-order: ', end='')
45    post_order(root)

In this example, we create a tree with nodes labeled from 'A' to 'G'. We then perform three types of tree traversals:

• Pre-order traversal: Visit the current node, then recursively visit the left subtree and the right subtree.
• In-order traversal: Recursively visit the left subtree, then visit the current node, and finally recursively visit the right subtree.
• Post-order traversal: Recursively visit the left subtree, then recursively visit the right subtree, and finally visit the current node.

The output of the code will be:

1Pre-order: A B D E C F G
2In-order: D B E A F C G
3Post-order: D E B F G C A

xxxxxxxxxx

    post_order(root)

if __name__ == '__main__':

    class Node:

        def __init__(self, data):

            self.data = data

            self.left = None

            self.right = None

​

    # Create a tree

    root = Node('A')

    root.left = Node('B')

    root.right = Node('C')

    root.left.left = Node('D')

    root.left.right = Node('E')

    root.right.left = Node('F')

    root.right.right = Node('G')

​

    # Perform tree traversal

    def pre_order(node):

        if node:

            print(node.data, end=' ')

            pre_order(node.left)

            pre_order(node.right)

​

    print('Pre-order: ', end='')

    pre_order(root)

​

    def in_order(node):

        if node:

            in_order(node.left)

Binary Trees

In computer science, a binary tree is a type of tree data structure in which each node has at most two children, referred to as left child and right child. The left child node is smaller than its parent, while the right child node is larger.

Binary trees have numerous applications in computer science and are commonly used in various algorithms and data structures. They are particularly useful for representing hierarchical data and performing efficient searches.

Here's an example of creating and traversing a binary tree using Python:

1if __name__ == '__main__':
2    class Node:
3        def __init__(self, data):
4            self.data = data
5            self.left = None
6            self.right = None
7
8    # Create a binary tree
9    root = Node(1)
10    root.left = Node(2)
11    root.right = Node(3)
12    root.left.left = Node(4)
13    root.left.right = Node(5)
14
15    # Print the values of the binary tree
16    def in_order_traversal(node):
17        if node:
18            in_order_traversal(node.left)
19            print(node.data, end=' ')
20            in_order_traversal(node.right)
21
22    print('In-order Traversal: ', end='')
23    in_order_traversal(root)

In this example, we create a binary tree with nodes labeled from 1 to 5. We then perform an in-order traversal, which visits each node of the tree in an order: left subtree, current node, right subtree.

The output of the code will be:

1In-order Traversal: 4 2 5 1 3

xxxxxxxxxx

if __name__ == '__main__':

    class Node:

        def __init__(self, data):

            self.data = data

            self.left = None

            self.right = None

​

    # Create a binary tree

    root = Node(1)

    root.left = Node(2)

    root.right = Node(3)

    root.left.left = Node(4)

    root.left.right = Node(5)

​

    # Print the values of the binary tree

    def in_order_traversal(node):

        if node:

            in_order_traversal(node.left)

            print(node.data, end=' ')

            in_order_traversal(node.right)

​

    print('In-order Traversal: ', end='')

    in_order_traversal(root)

Graphs

In computer science, a graph is a non-linear data structure consisting of a collection of vertices (or nodes) and edges. Each edge connects a pair of vertices and represents a relationship between them.

Graphs are widely used in various domains, including computer networking, social networks, and transportation systems. They provide a powerful way to model real-world relationships and solve complex problems.

To represent a graph in computer memory, there are several approaches, such as adjacency matrix and adjacency list. One common way is to use an adjacency list, which is a collection of linked lists or arrays that store the neighbors of each vertex.

Here's an example of creating and printing a graph using Python:

1if __name__ == '__main__':
2    class Graph:
3        def __init__(self):
4            self.graph = {}
5
6        def add_vertex(self, vertex):
7            if vertex not in self.graph:
8                self.graph[vertex] = []
9
10        def add_edge(self, vertex1, vertex2):
11            if vertex1 in self.graph and vertex2 in self.graph:
12                self.graph[vertex1].append(vertex2)
13                self.graph[vertex2].append(vertex1)
14
15        def print_graph(self):
16            for vertex in self.graph:
17                print(vertex, '->', self.graph[vertex])
18
19    # Creating a graph
20    g = Graph()
21
22    # Adding vertices
23    g.add_vertex('A')
24    g.add_vertex('B')
25    g.add_vertex('C')
26    g.add_vertex('D')
27
28    # Adding edges
29    g.add_edge('A', 'B')
30    g.add_edge('B', 'C')
31    g.add_edge('C', 'D')
32
33    # Print the graph
34    g.print_graph()

In this example, we create a graph with four vertices and three edges. We then print the graph, which displays the relationships between the vertices.

The output of the code will be:

1A -> ['B']
2B -> ['A', 'C']
3C -> ['B', 'D']
4D -> ['C']

xxxxxxxxxx

    g.print_graph()

if __name__ == "__main__":

    class Graph:

        def __init__(self):

            self.graph = {}

​

        def add_vertex(self, vertex):

            if vertex not in self.graph:

                self.graph[vertex] = []

​

        def add_edge(self, vertex1, vertex2):

            if vertex1 in self.graph and vertex2 in self.graph:

                self.graph[vertex1].append(vertex2)

                self.graph[vertex2].append(vertex1)

​

        def print_graph(self):

            for vertex in self.graph:

                print(vertex, "->", self.graph[vertex])

​

​

    # Creating a graph

    g = Graph()

​

    # Adding vertices

    g.add_vertex('A')

    g.add_vertex('B')

    g.add_vertex('C')

    g.add_vertex('D')

​

    # Adding edges

Hash Tables

In the world of data structures, hash tables are powerful tools that provide efficient data retrieval based on key-value pairs.

A hash table, also known as a hash map, is a data structure that uses a hash function to map keys to indices within an array. This allows for constant-time (O(1)) access, insertion, and deletion of elements.

The idea behind a hash table is to store the data in an array using a unique index generated by the hash function. The hash function takes a key as input and returns an index where the value associated with the key should be stored.

Here's an example of creating a hash table using Python:

1class HashTable:
2    def __init__(self):
3        self.size = 10
4        self.table = [None] * self.size
5
6    def _hash(self, key):
7        hash_value = 0
8        for char in str(key):
9            hash_value += ord(char)
10        return hash_value % self.size
11
12    def insert(self, key, value):
13        index = self._hash(key)
14        self.table[index] = value
15
16    def get(self, key):
17        index = self._hash(key)
18        return self.table[index]
19
20# Creating a hash table
21ht = HashTable()
22
23# Inserting key-value pairs
24ht.insert('apple', 'red')
25ht.insert('banana', 'yellow')
26
27# Get values using keys
28print(ht.get('apple'))  # Output: red
29print(ht.get('banana')) # Output: yellow

Algorithms on Data Structures

When it comes to working with data structures, it's not just about organizing and storing the data efficiently. We also need to perform various operations on the data, such as searching, sorting, and manipulating. This is where algorithms on data structures come into play.

An algorithm is a step-by-step procedure or a set of rules to solve a specific problem. In the context of data structures, algorithms are designed to perform specific tasks on the data stored within the structures.

For example, let's consider an algorithm to search for an element in an array. One popular algorithm for this task is the binary search. It takes advantage of the fact that the array is sorted and repeatedly divides the search space in half until the target element is found or determined to be not present.

Here's a Python example of the binary search algorithm for searching an element in a sorted array:

1def binary_search(arr, target):
2    left = 0
3    right = len(arr) - 1
4
5    while left <= right:
6        mid = (left + right) // 2
7
8        if arr[mid] == target:
9            return mid
10        elif arr[mid] < target:
11            left = mid + 1
12        else:
13            right = mid - 1
14
15    return -1
16
17# Example usage
18arr = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
19target = 7
20index = binary_search(arr, target)
21
22if index != -1:
23    print(f"{target} found at index {index}")
24else:
25    print(f"{target} not found")

xxxxxxxxxx

if __name__ == "__main__":

  for i in range(1, 101):

    if i % 3 == 0 and i % 5 == 0:

        print("FizzBuzz")

    elif i % 3 == 0:

        print("Fizz")

    elif i % 5 == 0:

        print("Buzz")

    else:

        print(i)

​

  print("Print something")

Common Data Structure Operations

In the world of data structures, common operations such as searching, sorting, and manipulating data are essential skills for any programmer. These operations allow us to efficiently work with the data stored within the structures and solve real-world problems.

Searching

Searching involves finding a specific element within a data structure. There are various algorithms and techniques to perform searching depending on the structure.

For example, in an array, we can use linear search or binary search to find an element. Linear search checks every element in the array one by one until the target element is found. Binary search, on the other hand, takes advantage of a sorted array and repeatedly divides the search space in half.

Here's an example of binary search in Python:

1def binary_search(arr, target):
2    left = 0
3    right = len(arr) - 1
4
5    while left <= right:
6        mid = (left + right) // 2
7
8        if arr[mid] == target:
9            return mid
10        elif arr[mid] < target:
11            left = mid + 1
12        else:
13            right = mid - 1
14
15    return -1
16
17# Example usage
18arr = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
19target = 7
20index = binary_search(arr, target)
21
22if index != -1:
23    print(f"{target} found at index {index}")
24else:
25    print(f"{target} not found")

Sorting

Sorting involves arranging the elements of a data structure in a specific order, usually in ascending or descending order. Sorting facilitates efficient searching, insertion, and deletion operations.

Various sorting algorithms exist, such as bubble sort, selection sort, insertion sort, merge sort, and quicksort. Each algorithm has its own time and space complexity characteristics, making it suitable for different scenarios.

Here's an example of using the bubble sort algorithm to sort an array in Python:

1def bubble_sort(arr):
2    n = len(arr)
3
4    for i in range(n):
5        for j in range(n - i - 1):
6            if arr[j] > arr[j + 1]:
7                arr[j], arr[j + 1] = arr[j + 1], arr[j]
8
9    return arr
10
11# Example usage
12arr = [5, 3, 8, 1, 2, 7, 10]
13sorted_arr = bubble_sort(arr)
14print(sorted_arr)

Manipulating

Manipulating data structures involves performing various operations to modify the existing data or create new data structures. Operations such as insertion, deletion, update, and merging fall under this category.

For example, in a linked list, we can insert a new node at the beginning or end of the list by updating the pointers of the respective nodes accordingly. We can also delete a node by rearranging the pointers of the previous and next nodes.

Here's an example of a linked list implementation in Python:

1class Node:
2    def __init__(self, data):
3        self.data = data
4        self.next = None
5
6
7class LinkedList:
8    def __init__(self):
9        self.head = None
10
11    def insert_at_end(self, data):
12        new_node = Node(data)
13
14        if self.head is None:
15            self.head = new_node
16        else:
17            current = self.head
18            while current.next:
19                current = current.next
20
21            current.next = new_node
22
23    def delete_at_beginning(self):
24        if self.head is not None:
25            self.head = self.head.next
26
27    def display(self):
28        current = self.head
29
30        while current:
31            print(current.data, end=" ")
32            current = current.next
33
34
35# Example usage
36ll = LinkedList()
37ll.insert_at_end(1)
38ll.insert_at_end(2)
39ll.insert_at_end(3)
40ll.insert_at_end(4)
41ll.display()  # Output: 1 2 3 4
42
43ll.delete_at_beginning()
44ll.display()  # Output: 2 3 4

By mastering these common data structure operations, you'll have a solid foundation for solving more complex problems and excelling in technical interviews.

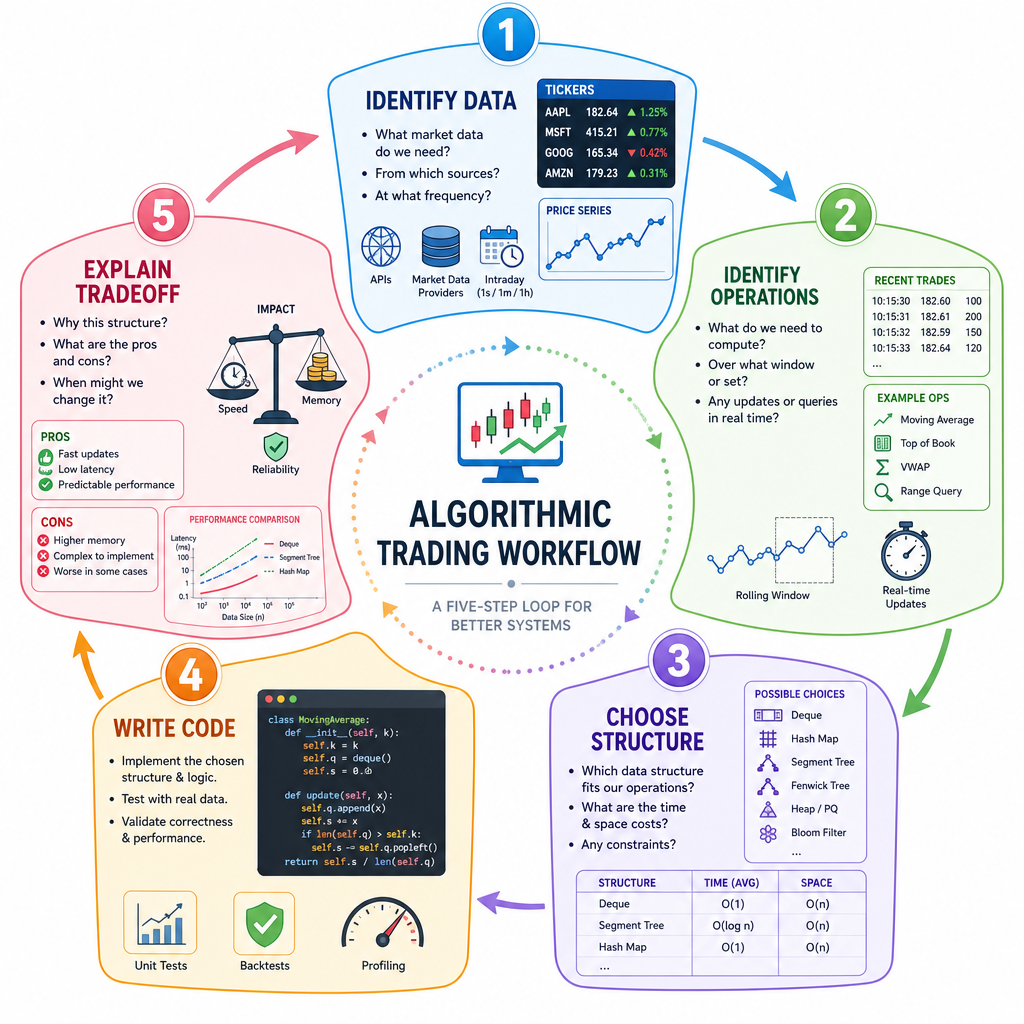

Choosing the Right Data Structure

When it comes to solving problems using data structures, choosing the right one can make a significant difference in terms of efficiency and ease of implementation. The goal is to select a data structure that best aligns with the problem's requirements and the specific operations that need to be performed.

To guide you in choosing the right data structure, here are some guidelines to consider:

1. Understanding the Problem: Start by fully understanding the problem and its requirements. Identify the key operations that need to be performed on the data, such as insertion, deletion, searching, or sorting.

2. Data Access Patterns: Analyze the expected data access patterns. Will the data be accessed randomly or sequentially? Are frequent insertions and deletions expected? This analysis will help determine the appropriate data structure.

3. Efficiency: Consider the efficiency requirements of the problem. Do you need fast search or retrieval? Are there any memory constraints?

4. Complexity: Evaluate the complexity of the data structure. Some data structures, like linked lists, have a simpler implementation but may have limitations in terms of efficiency. On the other hand, more complex data structures like trees or graphs provide powerful operations but may require additional computation.

5. Trade-offs: Understand the trade-offs associated with different data structures. For example, an array offers fast random access but limited flexibility in terms of resizing. On the other hand, a linked list provides flexibility but slower access time.

By considering these guidelines, you can make an informed decision when choosing the right data structure for a given problem. Remember to also take into account your own familiarity and comfort level with different data structures. Mastering a few key data structures and understanding their strengths and weaknesses will greatly enhance your problem-solving skills.

xxxxxxxxxx

if __name__ == "__main__":

  # Python logic here

  # Example code
